HeK 2012 - Sensing Place

FACTS

Exhibition "Sensing Place"@ HeK, Basel / Date : 31. August 2012 - 11. November 2012

Sensing Place. Zur medialen Durchdringung des urbanen Raums

Workhsop

A) Proposed Date : 11AM-18PM, 6./7. Oct or 10./11. Nov, 2012

Proposed Title :

- We Want Morse

- Morse Revisited

- Transceive!

- Plateaux Mobiles (out)

B) 28. Oktober 2012: Familientag: Workshop: DIY Makeaway (SolarWatch, Solar Bird or SGMKtiny)

Environment

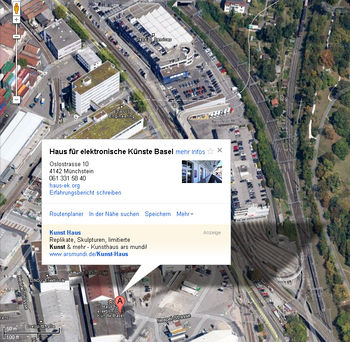

HeK on GoogleMaps

Workshop A - Morse Revisited (temp.)

Concept

Extracting common environment data via self-built device which encode environment data such as temperature, vibration, brightness, frequency of on/off event to morse-code of participant defined message, participant can read, listen and send our environment as morse code instantly thru walkie-talkie frequency to the installation.

Rather than mere a passive listener, the device also reacts to certain morse code messages that could be defined by the participant with simple programming with ATtiny chip.

To-Dev

• audio signal transmission
• communication protocol allows all devices to establised bi-direction communication to exchange data.

Requirement from paticipant

• Nope, perhaps an OpenMind,
• but welcome to bring a laptop if one likes to dig in their own ATtiny code & web interaction

DIY Device

Sender : (rough estimation : sFr. 24)

• microcontroller (ATtiny) sFr.2
• walki talki sFr. 12
• various sensor (temperature, piezo, light resistor, contact pad) sFr. 5
• PCB board/wire sFr. 5

Receiver : (rough estimation : sFr. 34)

• microcontroller (ATtiny) sFr.2
• small LCD Display sFr.15
• walki talki sFr.12
• PCB board/wire sFr. 5
• ear plug for mute section

Total Material cost for each participant : sFr. 60 The device could possible combine both sender and receiver to reduce the cost (Need Experiment depends on ATtiny's ability)

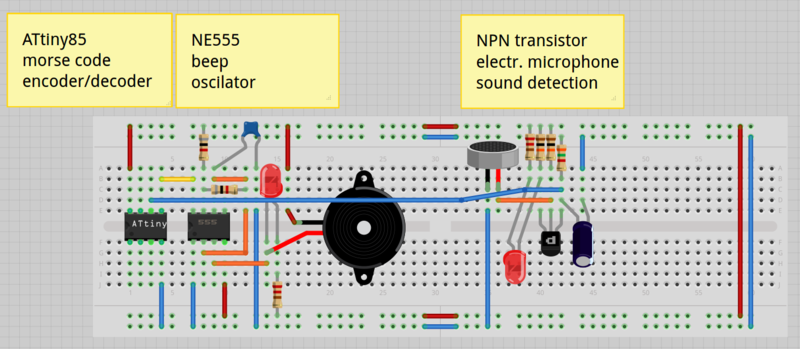

Morsecode encoder / decoder device

Bill of Materials: morse board.fzz

Saturday, September 1 2012, 15:01:59 Assembly List

Label	Part Type	Properties
ATtiny85	DIP - 8 pins	package DIP (Dual Inline) [THT]; hole size 1.0mm,0.508mm; true; chip label ATtiny85; pins 8; pin spacing 300mil
C1	Ceramic Capacitor	package 100 mil [THT, multilayer]; capacitance 47µF; voltage 6.3V
C2	Electrolytic Capacitor	package 100 mil [THT, electrolytic]; capacitance 4.7µF; voltage 6.3V
J1	Piezo Speaker
LED1	Red LED - 5mm	package 5 mm [THT]; leg yes; color Red (633nm)
LED3	Red LED - 5mm	package 5 mm [THT]; leg yes; color Red (633nm)
MIC1	Microphone
Q2	PNP-Transistor	package TO92 [THT]; type PNP
R1	8k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 8kΩ; pin spacing 400 mil
R3	8k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 8kΩ; pin spacing 400 mil
R4	220 Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 220Ω; pin spacing 400 mil
R5	10k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 10kΩ; pin spacing 400 mil
R6	3.5k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 3.5kΩ; pin spacing 400 mil
R7	10k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 10kΩ; pin spacing 400 mil
R8	220 Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 220Ω; pin spacing 400 mil
U1	555 Timer	package DIP8 [THT]

Shopping List Amount Part Type Properties

2	Piezo Speaker
1	Electrolytic Capacitor	package 100 mil [THT, electrolytic]; capacitance 4.7µF; voltage 6.3V
1	Ceramic Capacitor	package 100 mil [THT, multilayer]; capacitance 47µF; voltage 6.3V
2	Red LED - 5mm	package 5 mm [THT]; leg yes; color Red (633nm)
1	DIP - 8 pins	package DIP (Dual Inline) [THT]; hole size 1.0mm,0.508mm; true; chip label ATtiny85; pins 8; pin spacing 300mil
1	555 Timer	package DIP8 [THT]
2	10k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 10kΩ; pin spacing 400 mil
2	220 Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 220Ω; pin spacing 400 mil
1	3.5k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 3.5kΩ; pin spacing 400 mil
2	8k Ω Resistor	package THT; tolerance ±5%; bands 4; resistance 8kΩ; pin spacing 400 mil
1	PNP-Transistor	package TO92 [THT]; type PNP

Exported with Fritzing 0.7.7- http://fritzing.org

Software/Protocol

• pd
• ATtiny programming
• Arduino (optional)

Installation

-- JUST IDEA --

An A1 size poster with embedded LED Array, able to listen to morse code from sender and display the message character by character.

Component :

• A1 printed poster
• Lots LED
• Arduino + walkie talkie + mic circuit
• wifi sender to web (optional) that same physical poster also display as virtual poster on web page
• poster has two modes (workshop documentation & live)

SGMKer

• Aurelio
• Pei
• Toibas

write your name here who like to develop, run, join this module ~

Workshop B - DIY Makeaway

SGMKer

• ?
• ??

write your name here who like to develop, run, join this module ~

Tech

http://cosm.com/

http://en.wikipedia.org/wiki/Internet_of_Things

http://en.wikipedia.org/wiki/Transceiver

Example Works

http://aporee.org/maps/

http://www.and-or.ch/beforethesatellite/

http://www.and-or.ch/wardive_android/

http://www.pool09.ch/project/detail/141

http://www.haus-ek.org/de/content/cctv-trail-images-ein-spaziergang-durch-die-%C3%BCberwachte-stadt-mit-der-mediengruppe-bitnik

Example Images

Ref. LINKS

New 3G + GPS shield for Arduino http://www.cooking-hacks.com/index.php/documentation/tutorials/arduino-3g-gprs-gsm-gps

Arduino GSM shield AT Commands http://labs.arduino.cc/GPRS/Index http://en.wikipedia.org/wiki/Hayes_command_set http://www.open-electronics.org/arduino-gsm-shield/

Cellular Shield with SM5100B https://www.sparkfun.com/products/9607?

open source wireless sensor platform http://www.cooking-hacks.com/index.php/documentation/tutorials/waspmote?utm_source=banner_waspmote_sidebar&utm_medium=banner

WASPMOTE http://www.libelium.com/products/waspmote

SquidBee http://www.libelium.com/squidbee/index.php?title=Main_Page

SMS@Arduino http://finch.am/projects/arduinogsm/ http://www.dealextreme.com/p/usb-tri-band-gprs-modem-cell-phone-radio-gsm-900-1800-1900mhz-12057

Using the nRF24L01 wireless module http://www.insidegadgets.com/2012/08/22/using-the-nrf24l01-wireless-module/#more-3560 http://www.tinkerer.eu/AVRLib/nRF24L01 http://www.nordicsemi.com/eng/Products/2.4GHz-RF/nRF24L01 http://arduino-info.wikispaces.com/Nrf24L01-2.4GHz-HowTo

Sensor Networks http://www.sensor-networks.org/

Freeloader http://www.solartechnology.co.uk/shop/freeloader-pico.htm

Migros Budget Internet Stick (Swisscom: works on Linux!) + Raspberry Pi? http://www.migros.ch/de/supermarkt/m-budget/m-budget-mobile-internet.html

MQTT http://en.wikipedia.org/wiki/MQ_Telemetry_Transport

ADK https://www.adafruit.com/products/563

Walkie Talkie http://www.ebay.ch/itm/Motorola-TLKR-T4-PMR-Funkgerat-/160862252542?pt=DE_Handys_Kommunikation_Funktechnik&hash=item2574232dfe#ht_2470wt_907 http://www.ebay.ch/itm/Switel-WTE-020-Walkie-Talkie-Set-duo-max-Reichweite-3k-/400314840381?pt=DE_Handys_Kommunikation_Funktechnik&hash=item5d349fb53d#ht_2747wt_907

http://www.ladyada.net/make/tweetawatt/receiver.html

XBee radiosWireless Arduino programming/serial link http://www.ladyada.net/make/xbee/arduino.html http://www.digi.com/products/wireless-wired-embedded-solutions/zigbee-rf-modules/zigbee-mesh-module/xbee-zb-module#specs http://www.digi.com/products/wireless-wired-embedded-solutions/zigbee-rf-modules/point-multipoint-rfmodules/xbee-series1-module#specs

EnOcean Wireless http://www.enocean.com/de/batterielose-funktechnologie/

Multi-Remote Receiver operated on/off Switch http://www.hobbyking.com/hobbyking/store/__12615__Multi_Remote_Receiver_operated_on_off_Switch_.html

Tweet-a-wattMake the receiver http://www.ladyada.net/make/tweetawatt/receiver.html

Walkie Talkie http://www.ebay.ch/itm/Motorola-TLKR-T4-PMR-Funkgerat-/160862252542?pt=DE_Handys_Kommunikation_Funktechnik&hash=item2574232dfe#ht_2470wt_907

XBees http://www.digi.com/products/wireless-wired-embedded-solutions/zigbee-rf-modules/point-multipoint-rfmodules/xbee-series1-module#specs

RC Hobby Controllers and Arduino http://www.sparkfun.com/tutorials/348

FS-GT2 3ch 2.4GHz Transmitter Receiver RC CAR FS 2.4G http://www.ebay.com/itm/FS-GT2-3ch-2-4GHz-Transmitter-Receiver-RC-CAR-FS-2-4G-/280930040917?pt=Radio_Control_Parts_Accessories&hash=item4168bc3c55#ht_2785wt_1073
